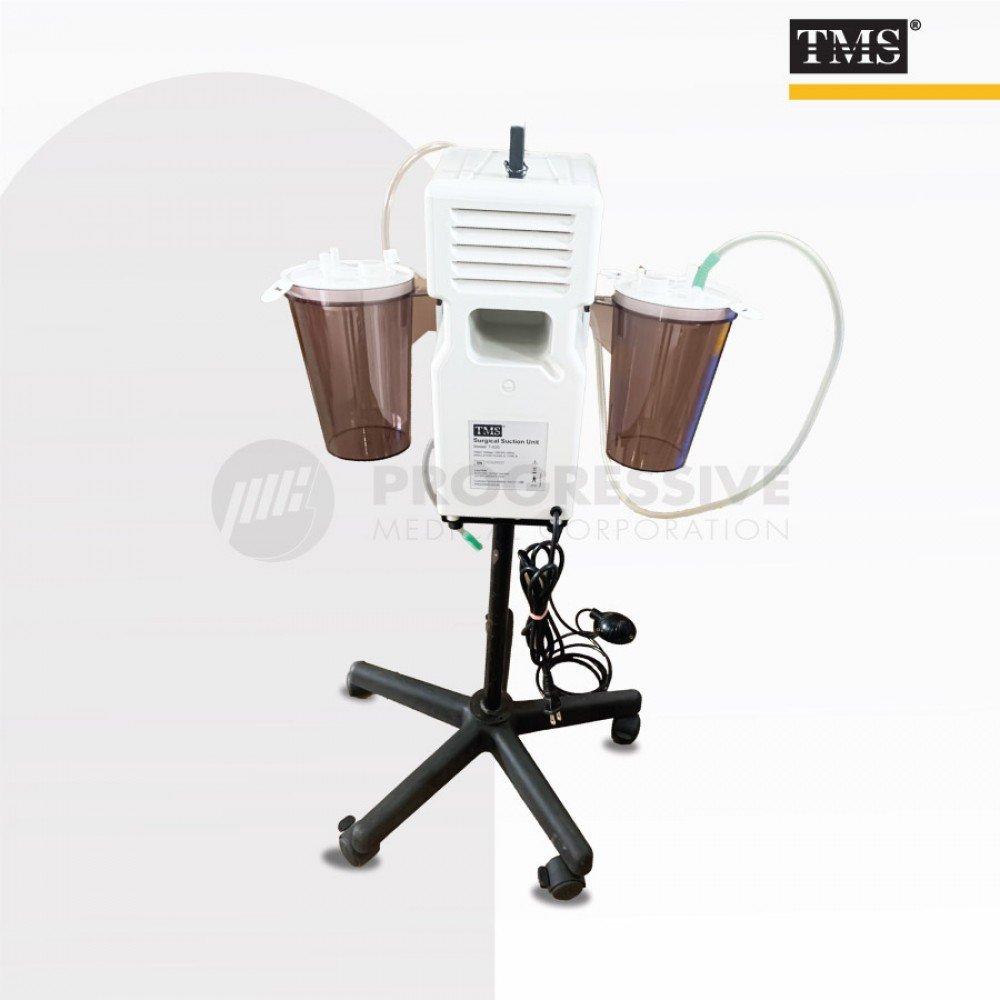

The TMS T-520 is a professional-grade surgical suction unit designed for high-demand medical environments. With a maximum vacuum pressure of 630 mmHg and a flow rate of 47 LPM, it delivers reliable and efficient suction performance. This unit supports two 3000ml collection bottles, four 45cm tubings, and two 180cm tubings, making it ideal for extended procedures and continuous use.

Features and Benefits:

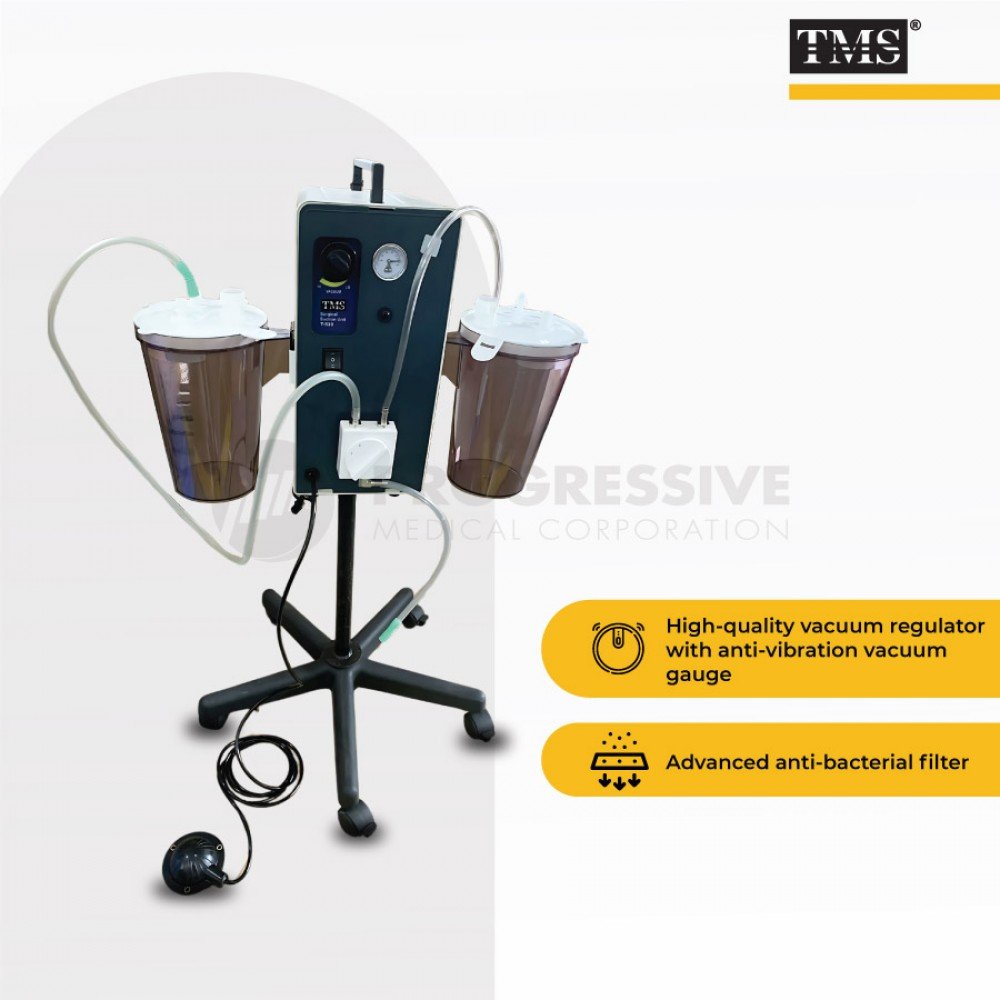

• Advanced anti-bacterial filter helps prevent contamination
• High-quality vacuum regulator with anti-vibration vacuum gauge

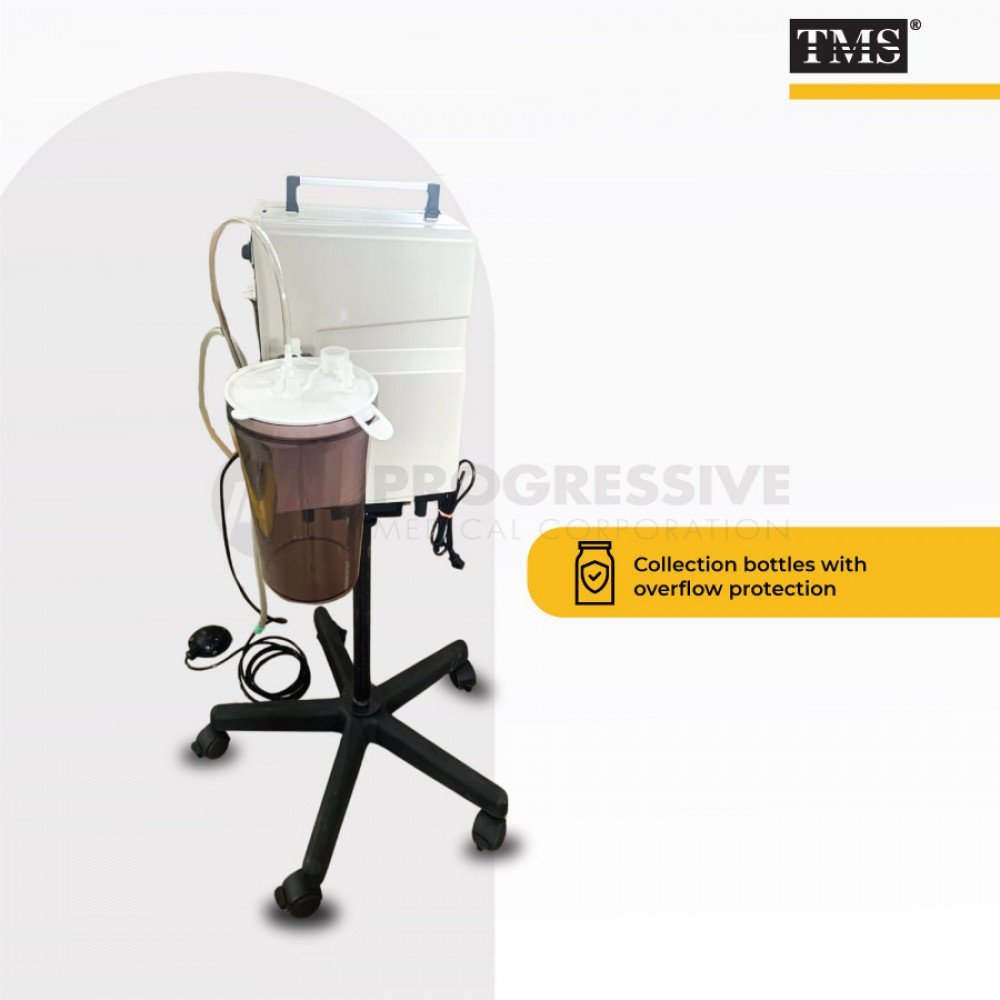

• Collection bottles with overflow protection
• Quiet and effective operation using a WOBL piston design
• Built for continuous operation with superior reliability
• Portable and easy to clean

Specifications:

• Dimensions:
• Enclosure: 33 × 19 × 39 cm
• Assembly: 33 × 52 × 105 cm
• Weight:
• Enclosure: 8.8 kg
• Assembly: 14.0 kg
• Maximum Vacuum Pressure: 630 mmHg
• Flow Rate: 47 LPM
• Sound Level: 54 dBA
• Electrical Requirements: AC 220V ~ 60Hz / 0.92A
• Power Consumption: 150 watts
• Bacteria Filter Pore Size: 0.2 microns

Operating Conditions:

• Temperature: 0–40°C (32–104°F)
• Humidity: ≤ 95% RH
• Atmospheric Pressure: 10.2–15.4 psi (70–106 kPa)

Storage & Transport Conditions:

• Temperature: –10 to 70°C (14–158°F)
• Humidity: 0–95% RH
• Atmospheric Pressure: 7.3–15.4 psi (50–106 kPa)

Equipment Classification:

• Electrical Shock Protection: Class II, Type B
• Water Ingress Protection: IPX0 (No protection)
• Operation Mode: Intermittent
• Note: Not suitable for use in the presence of flammable anesthetic mixtures with air, oxygen, or nitrous oxide.



Included Accessories:

• 3000 ml Canister – 2 pcs
• Bacterial Filter – 1 pc
• Flow Switch – 1 pc
• 6" Suction Tube – 2 pcs
• 1.5’ Suction Tube – 4 pcs
• Foot Paddle – 1 pc
• Stand – 1 pc
